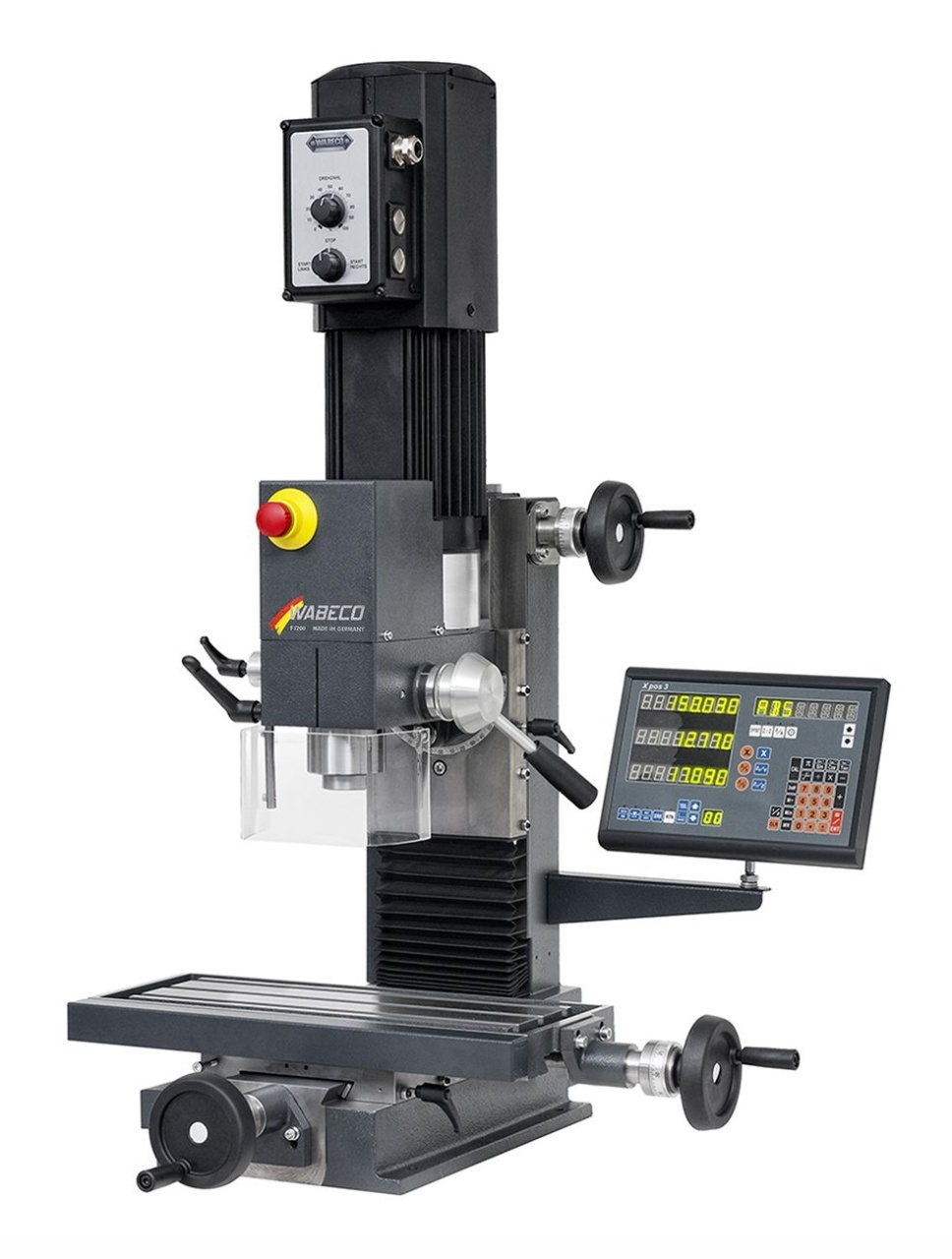

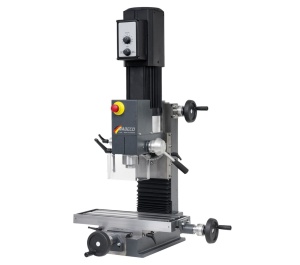

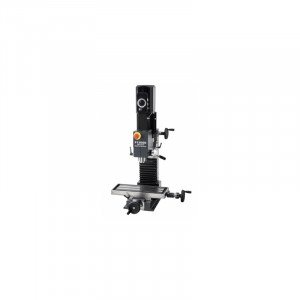

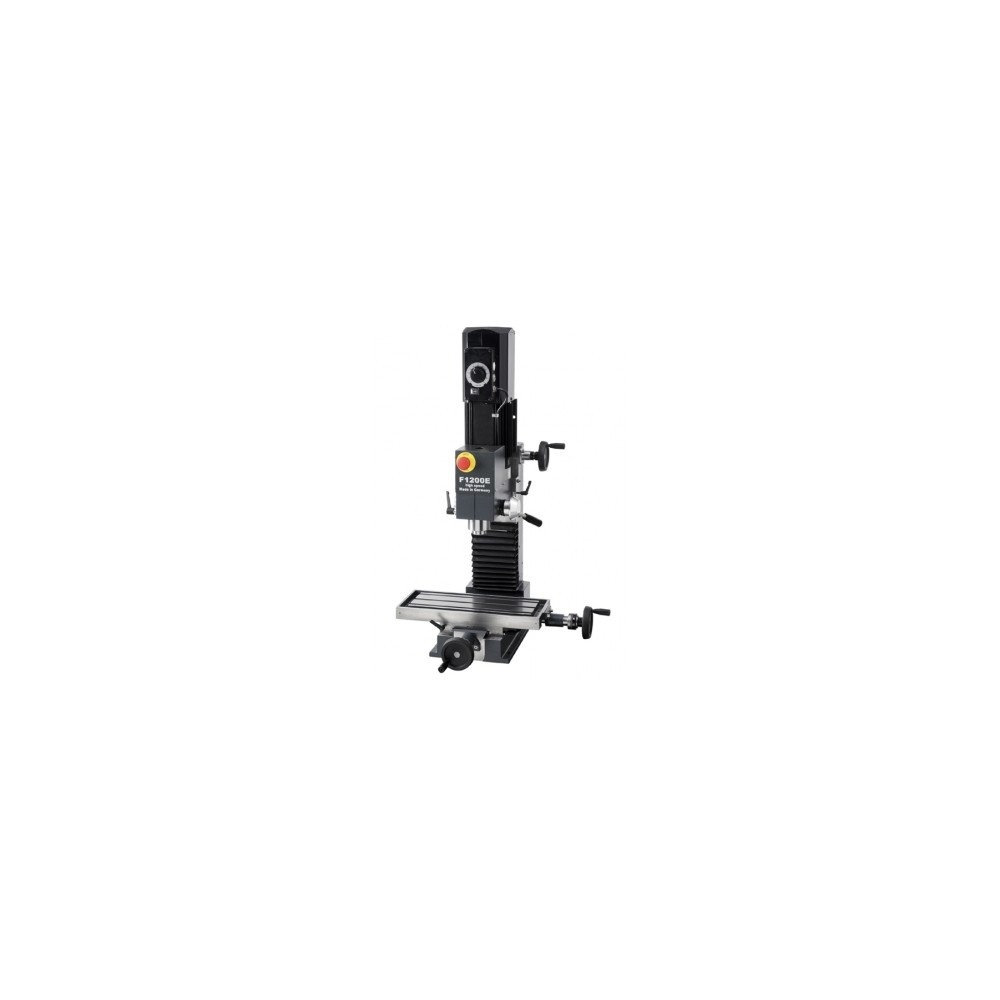

Freza de banc WABECO F 1202 MT2 HIGH SPEED

Name: Freza de banc WABECO F 1202 MT2 HIGH SPEED
Brand: Wabeco
SKU: 11202
Price: 33607.5 RON
Availability: InStock

33.607,50 RON

Costurile de livrare nu sunt incluse, dar la comenzi peste 300 lei transportul este gratuit.

de la 1.736,39 RON / Luna

Avans pe gustul tau

Cumpara acum, plateste mai tarziu de la 662,53 RON / Luna Detalii aici

Descriere

Freza de banc WABECO F 1202E HIGH SPEED

– garantam precizia pentru ca productia are loc in Germania pe masini de precizie

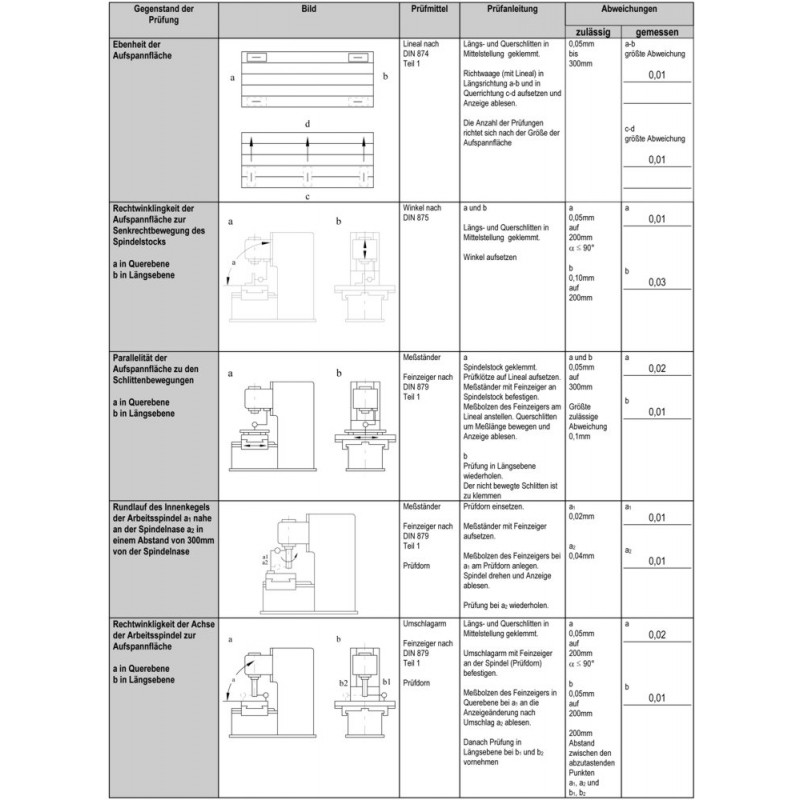

– fabricata pentru precizie si se emite un raport de test

– cu variator electronic al turatiei, infinit variabil de la 140 - 3000 r.p.m. transmisia este dinamica

– motor puternic cu invertor, 1,4kW, 230 V, 50Hz

– con MT2

– protectie impotriva atingerii axului principal, se indeparteaza usor pentru schimbarea sculelor

– ghidaje reglabile fara joc pe axa Z

– surub de avans fara joc, reglabile cu nut de bronz pentru axa Z

– capul frezei se regleaza pana la 90º ST/DR

– miscare de avans mica

– opritor gaurire

– protectii pentru ghidaje

– fixare exacta a penei pe toata suprafata

– cuplu constant pe toata plaja de turatii

– 5 ani garantie

Detalii tehnice

Working range
longitudinal travel X-axis	260 mm
transverse travel Y-axis	150 mm (optional 180 mm)
vertical travel Z-axis	280 mm
drill stroke	55 mm
distance milling table - tool spindle	min. 100 mm max. 380 mm
outreach tool spindle - column	185 mm
Clamping table
clamping table	450 x 180 mm
number of T-slots	3
width of T-slots	12 mm
center distance between T-slots	50 mm
Machine precision
machine precision according to DIN 8615	●
Main drive motor
frequency-controlled servomotor 230 V, 50/60 Hz	2.5 kW
due to high speed suitable for small tools e.g. for engraving work	●
left-right rotation for thread cutting	●
electronically infinitely variable drive	100 - 7500 U/min
with overload protection	●
dynamic torque throughout the entire speed range	●
high torque even in the lowest speed range, e.g. for machining hard-to-cut materials	●
Silent running
extremely silent running due to innovative belt drive	●
Drive technology
drive electronics with multiple fault monitoring circuits	●
e.g. milling in steel with a shank cutter Ø 10 mm with one infeed	approx. 10 mm

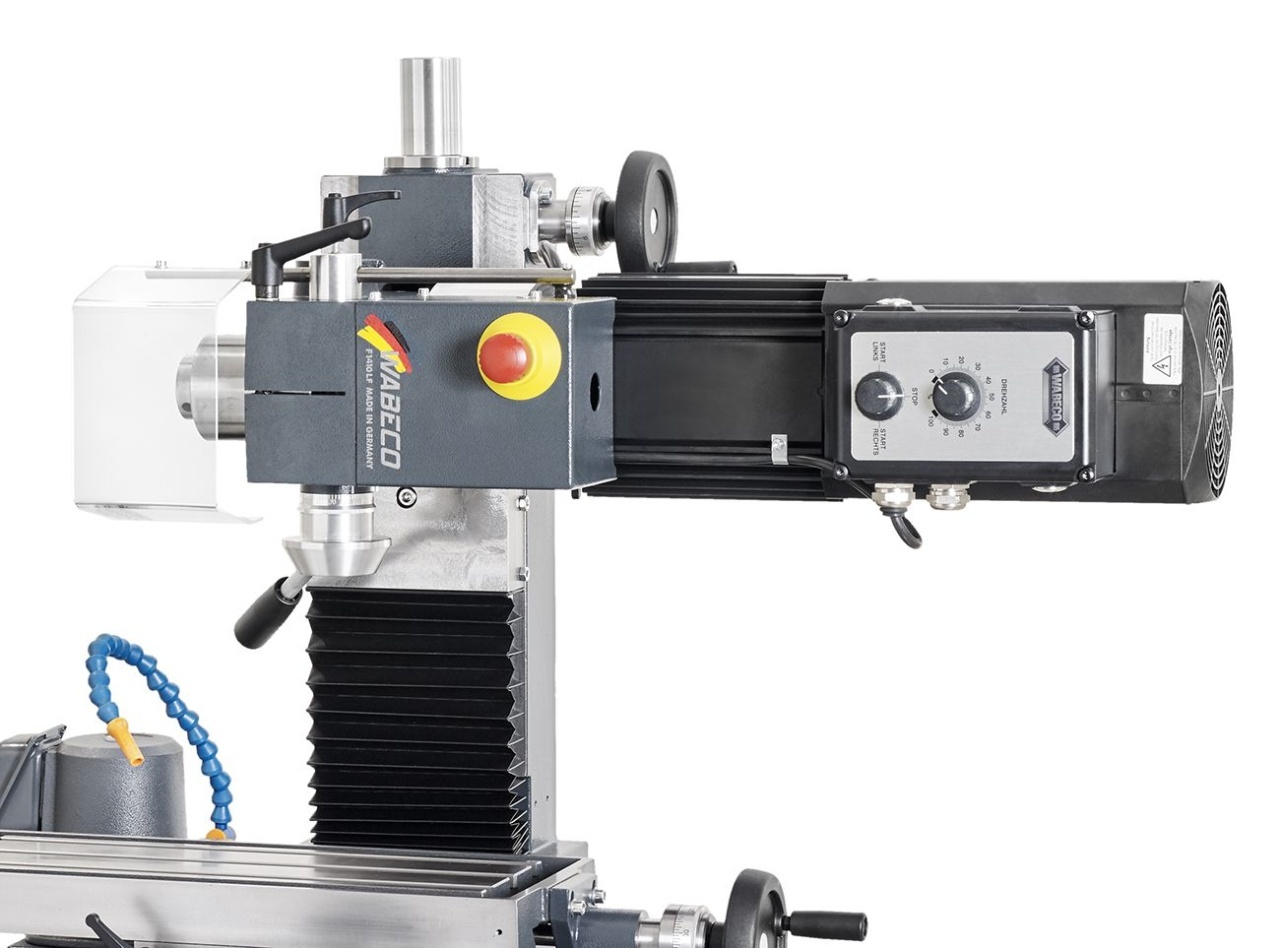

Milling head

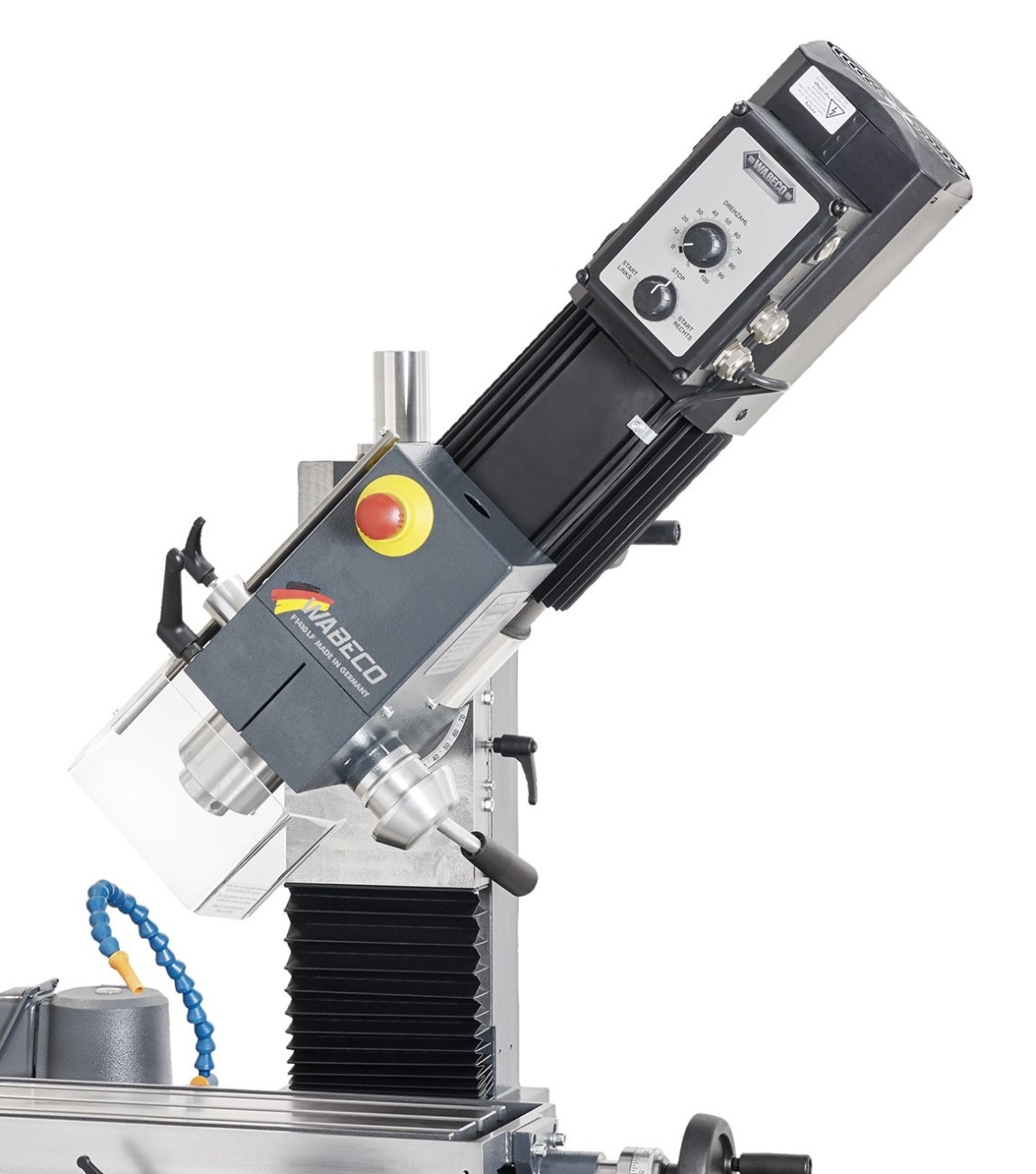

milling head can be swivelled through 90° on both sides (-90° to +90°)	●
angle position easily read off of the large scale	●
vertical positon can be preset by means of a hardened and ground conical index pin	●
protective hood	●
Quill stroke
quill stroke with drilling depth stop	●
form-fit clamping of the quill over the entire lateral surface	●
reading accuracy scale ring - quill stroke	0.1 mm

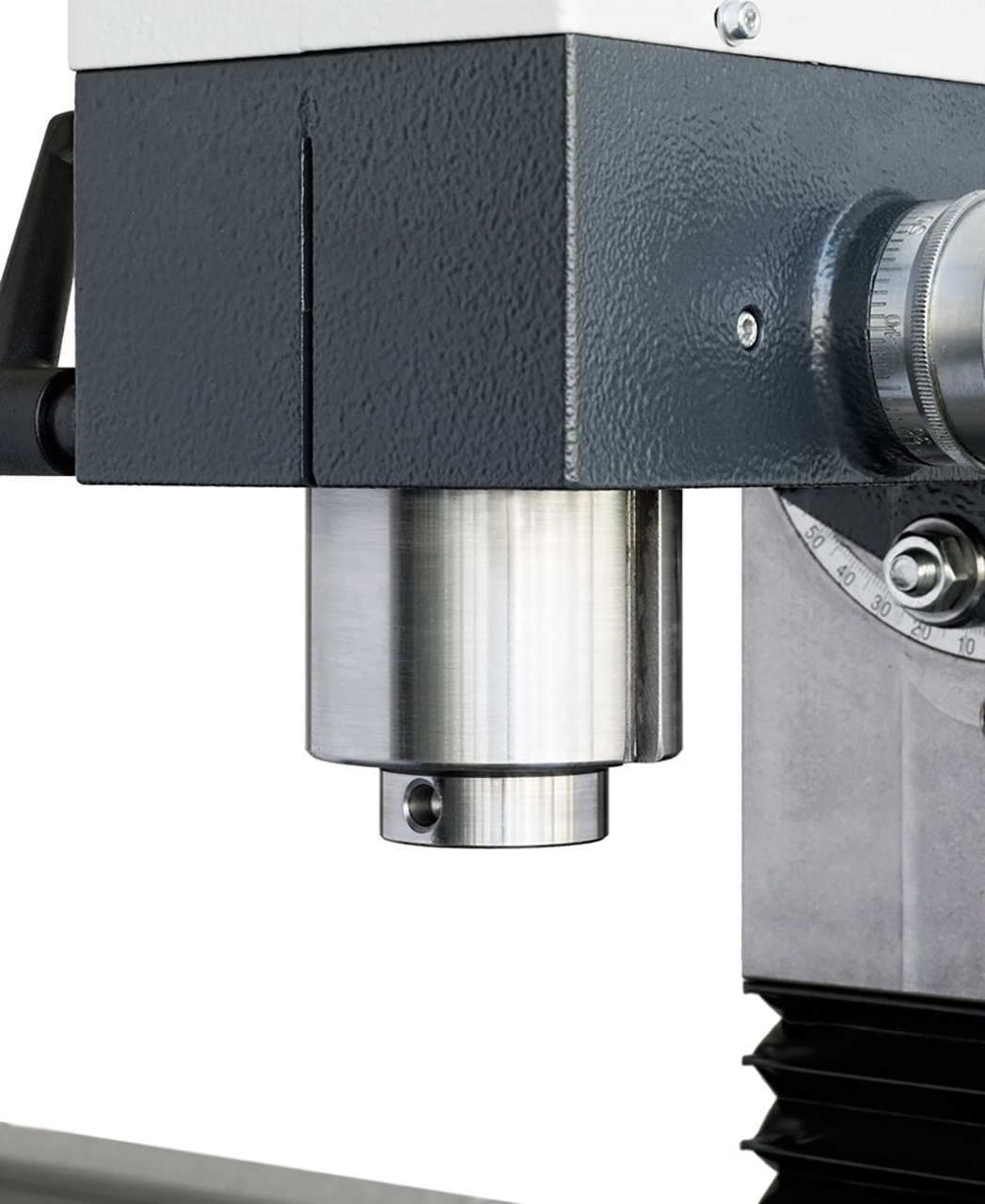

Tool spindle
with re-adjustable anti-friction bearings arranged in a large dimensioned drilling- and milling quill	●
true running accuracy of the tool spindle	0.01 mm
wide toothed belt between motor and tool spindle ensures a slip-free drive and a smooth running	●
Tool holder
MT2 with tightening thread M10	●
Tool clamping and ejecting system
for clamping and ejecting the tools without extra effort	●
Z-column and base plate
made of ribbed gray cast iron	●
Fine feed Z-axis
fine feed in the Z-axis	●
Guides
dovetail guides	●
free of play adjustable in all axes	●
high workpiece accuracy	●
2 folding bellows for guide protection	●
Axes locking device
clean milling surface by fixing the individual axes	●
Feed screws
trapezoidal thread spindles in all axes	●
adjustable by means of adjustable bronze double nuts	●
reading accuracy of the scale rings 0.05 mm	●
Dimensions and weight
machine dimensions without packaging	W650 x D625 x H900 mm
weight without packaging	96 kg
