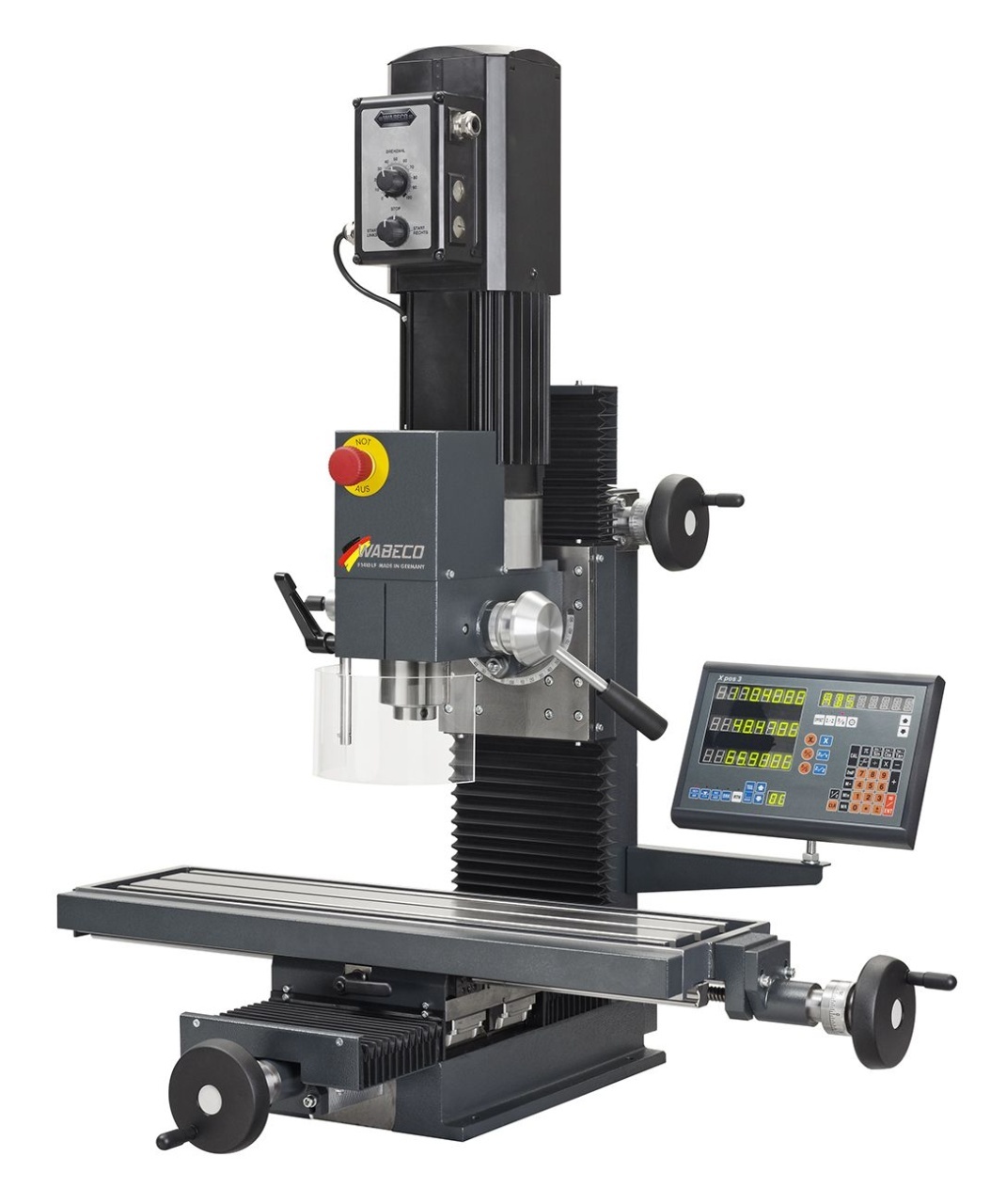

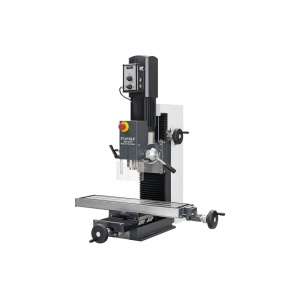

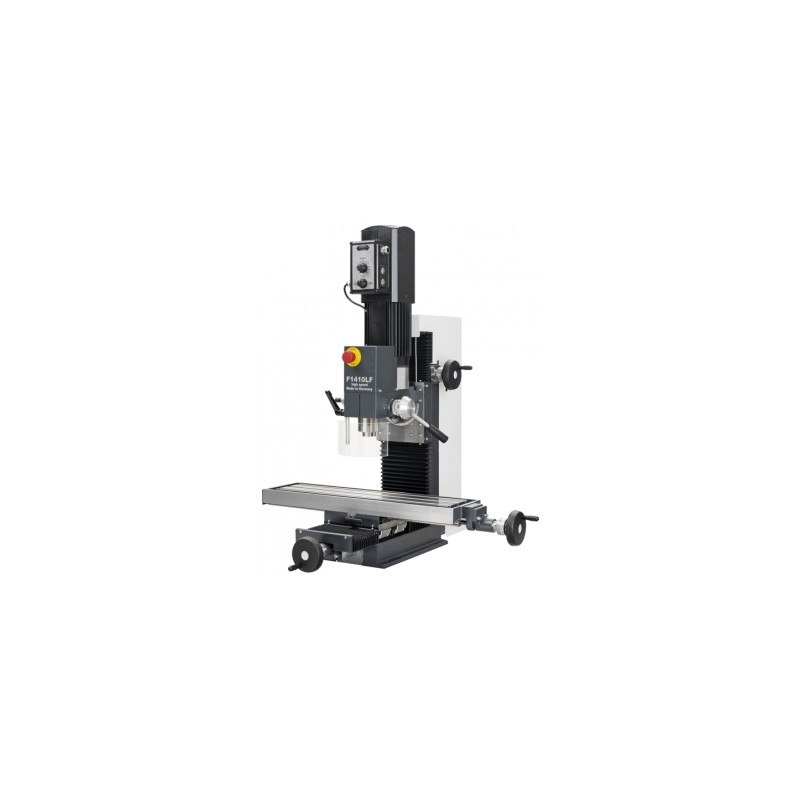

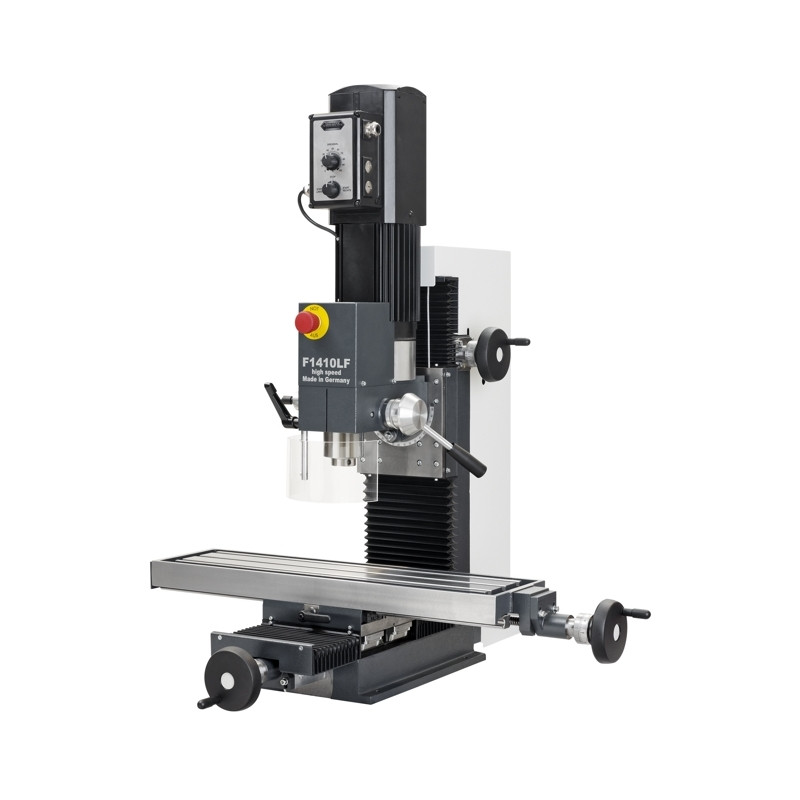

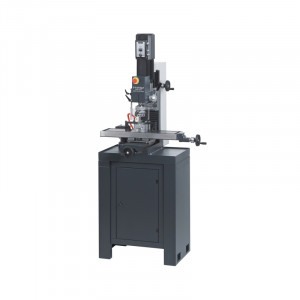

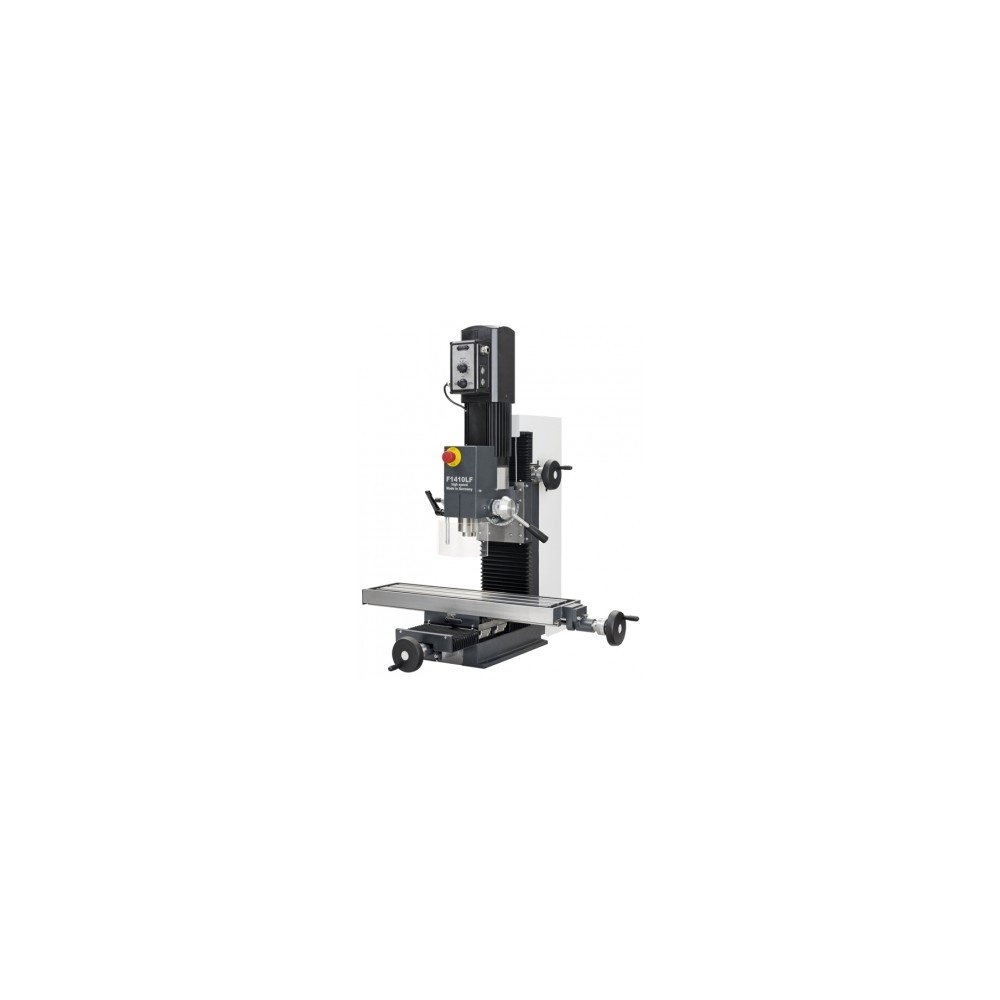

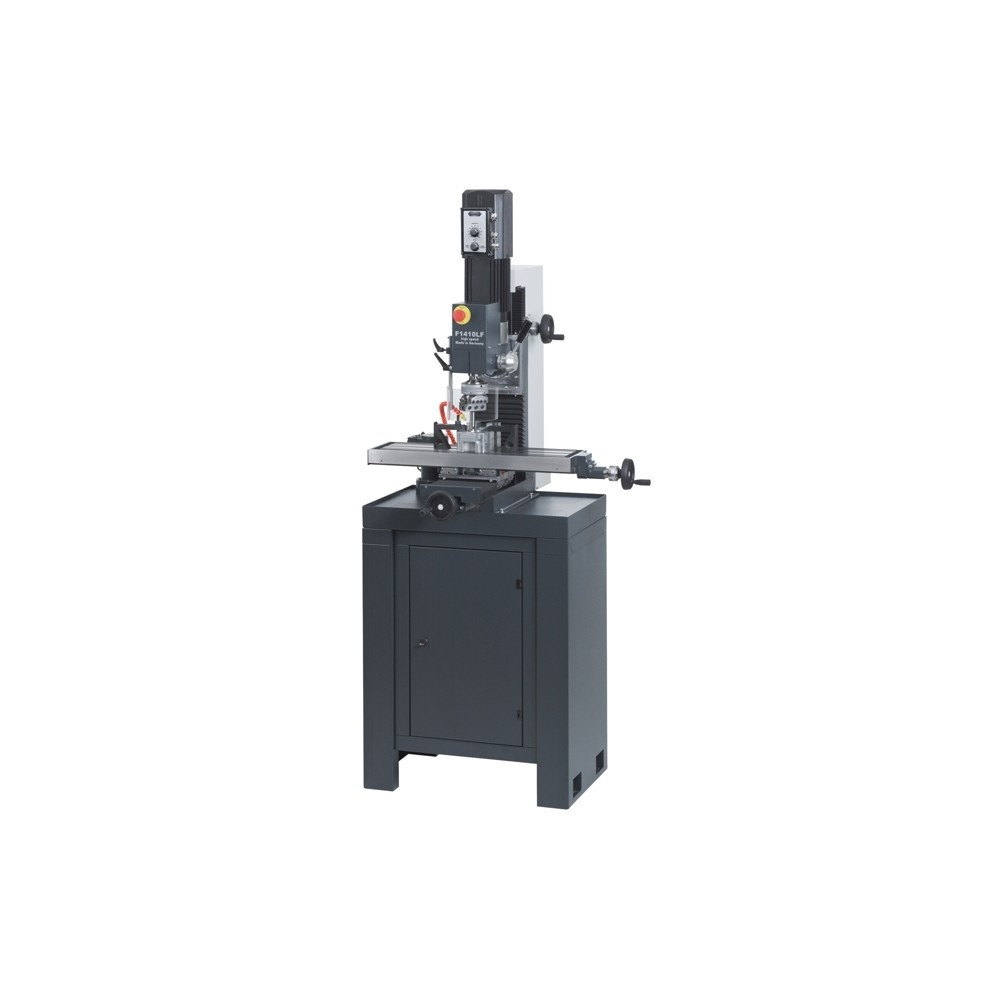

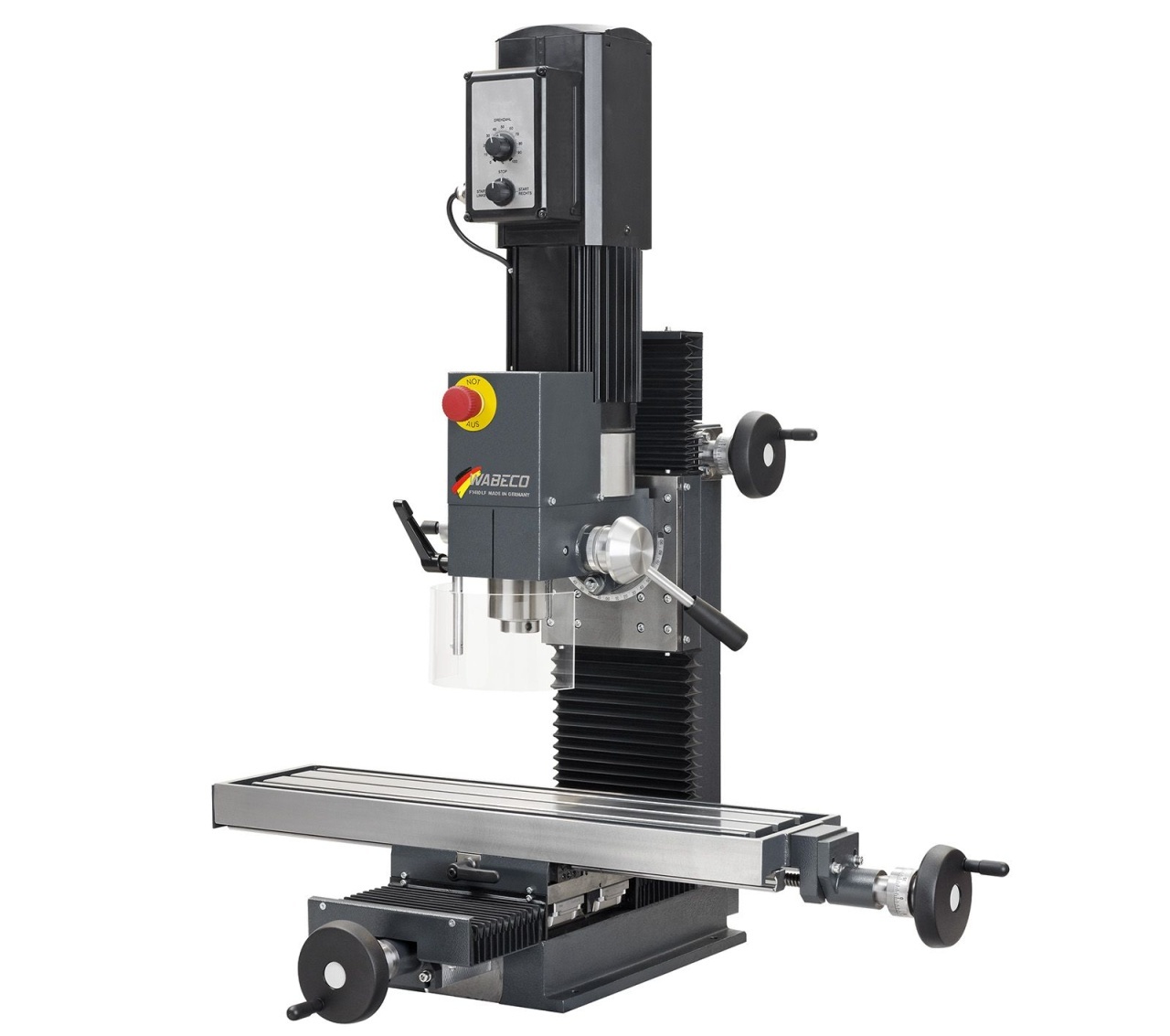

Freza WABECO F 1420LF High Speed cu ghidaje lineare pe axe

- garantam precizia pentru ca productia are loc in Germania pe masini de precizie

- fabricata pentru precizie si se emite un raport de test

- cu variator electronic al turatiei, infinit variabil de la 140 - 3000 r.p.m. transmisia este dinamica

- motor puternic cu invertor, 2.5 kW, 100 - 7500 rpm

- con MT2

– protectie impotriva atingerii axului principal, se indeparteaza usor pentru schimbarea sculelor

– ghidaje reglabile fara joc pe axa Z

- surub de avans fara joc, reglabile cu nut de bronz pentru axa Z

- capul frezei se regleaza pana la 90º ST/DR

- miscare de avans mica

- opritor gaurire

- protectii pentru ghidaje

- fixare exacta a penei pe toata suprafata

- cuplu constant pe toata plaja de turatii

- 5 ani garantie

Working range
longitudinal travel X-axis	500 mm
transverse travel Y-axis	200 mm
vertical travel Z-axis	280 mm
drill stroke	55 mm
distance milling table - tool spindle	min. 60 mm max. 340 mm
outreach tool spindle - column	185 mm
clamping table
clamping table	700 x 180 mm
number of T-slots	3
width of T-slots	12 mm
center distance between T-slots	50 mm
Machine precision
machine precision according to DIN 8615	●
Main drive motor
single-phase series wound motor speed-controlled 230 V, 50/60 Hz	2,5 kW
as direct current model with permanent, closed loop rpm control system	●
electronically infinitely variable drive	100 - 7500 rpm
with overload protection	●
dynamic torque throughout the entire speed range	●
high torque even in the lowest speed range, e.g. for machining hard-to-cut materials	●
Silent running
extremely silent running due to innovative belt drive	●
Drive technology
drive electronics with multiple fault monitoring circuits	●

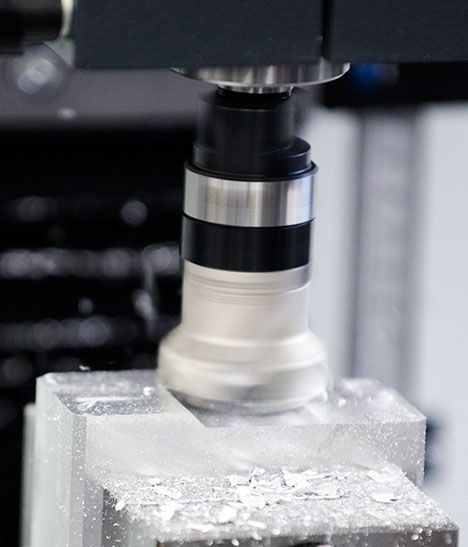

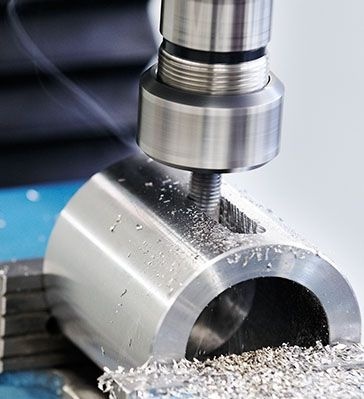

e.g. milling in steel with a shank cutter Ø 10 mm with one infeed	approx. 10 mm

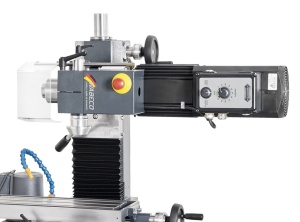

Milling head

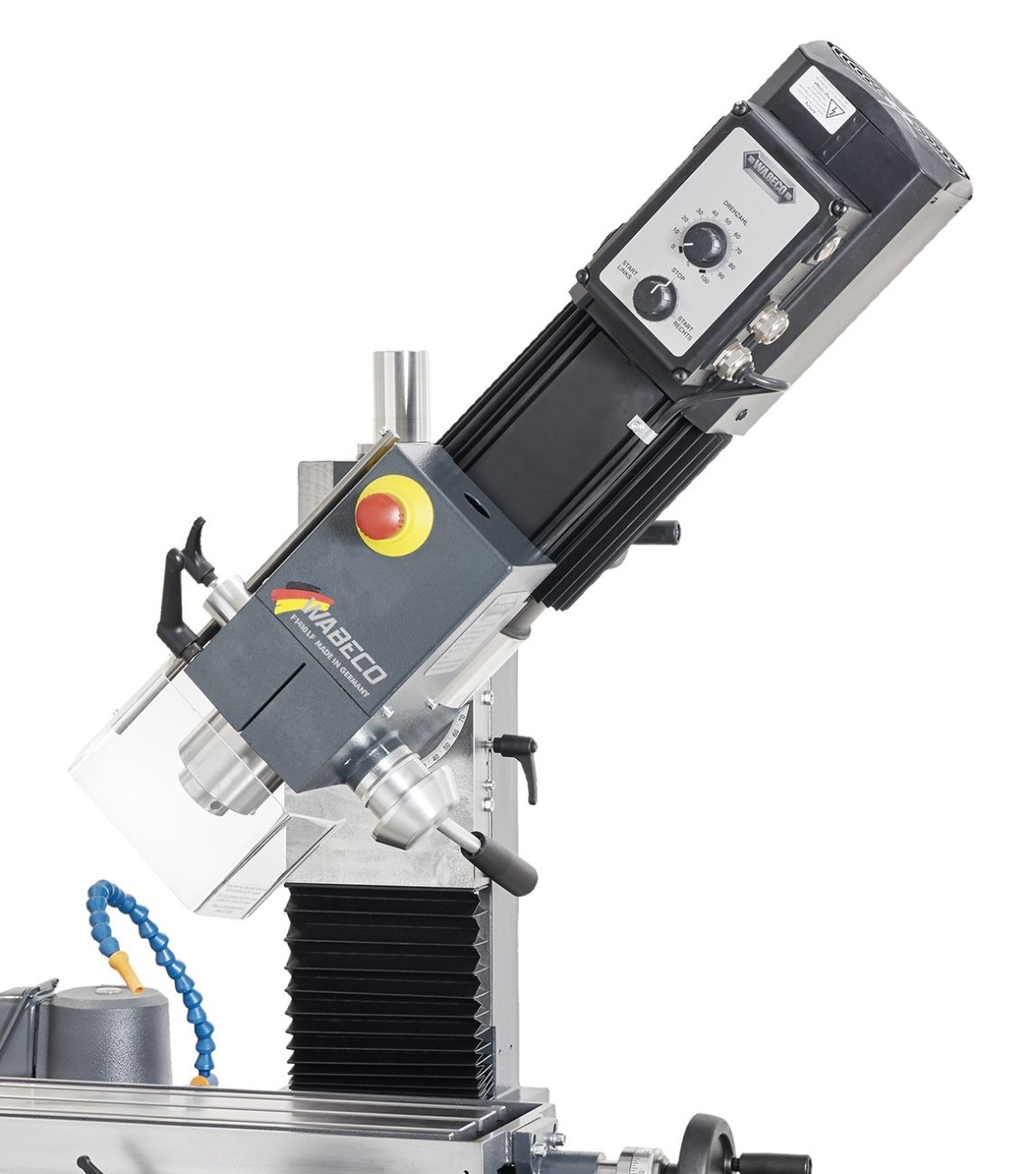

milling head can be swivelled through 90° on both sides (-90° to +90°)	●
angle position easily read off of the large scale	●
vertical positon can be preset by means of a hardened and ground conical index pin	●
protective hood	●

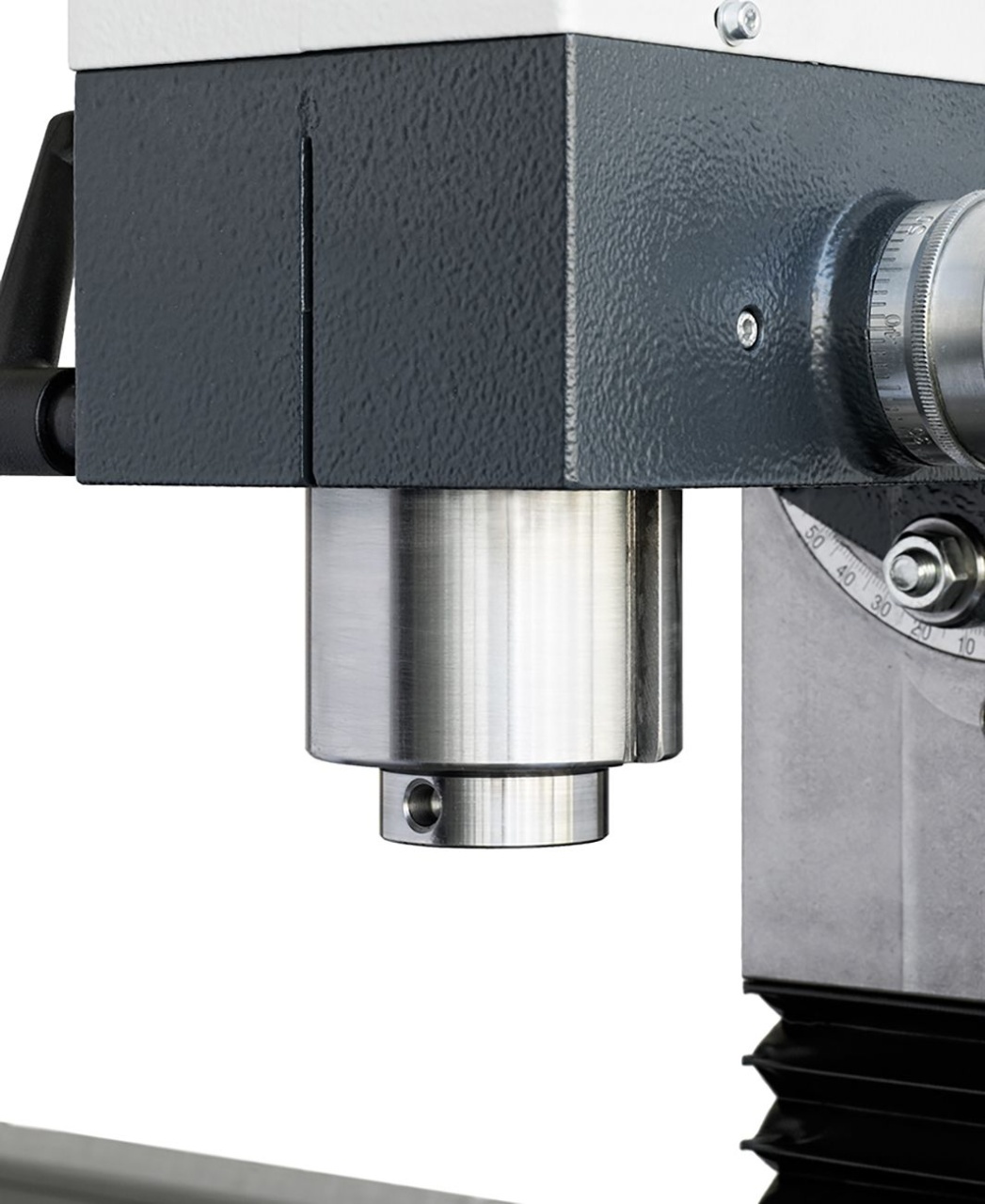

Quill stroke
quill stroke with drilling depth stop	●
form-fit clamping of the quill over the entire lateral surface	●
reading accuracy scale ring - quill stroke	0.1 mm
Tool spindle
with re-adjustable anti-friction bearings arranged in a large dimensioned drilling- and milling quill	●
true running accuracy of the tool spindle	0.01 mm
wide toothed belt between motor and tool spindle ensures a slip-free drive and a smooth running	●

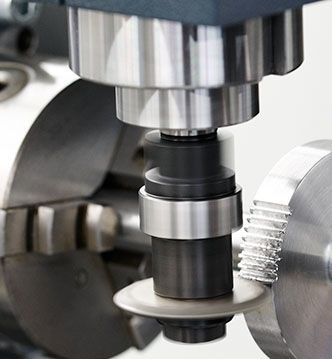

Tool holder
MT2 with tightening thread M10	●
Tool clamping and ejecting system
for clamping and ejecting the tools without extra effort	●
Z-column and base plate
made of ribbed gray cast iron	●
Fine feed Z-axis
fine feed in the Z-axis	●

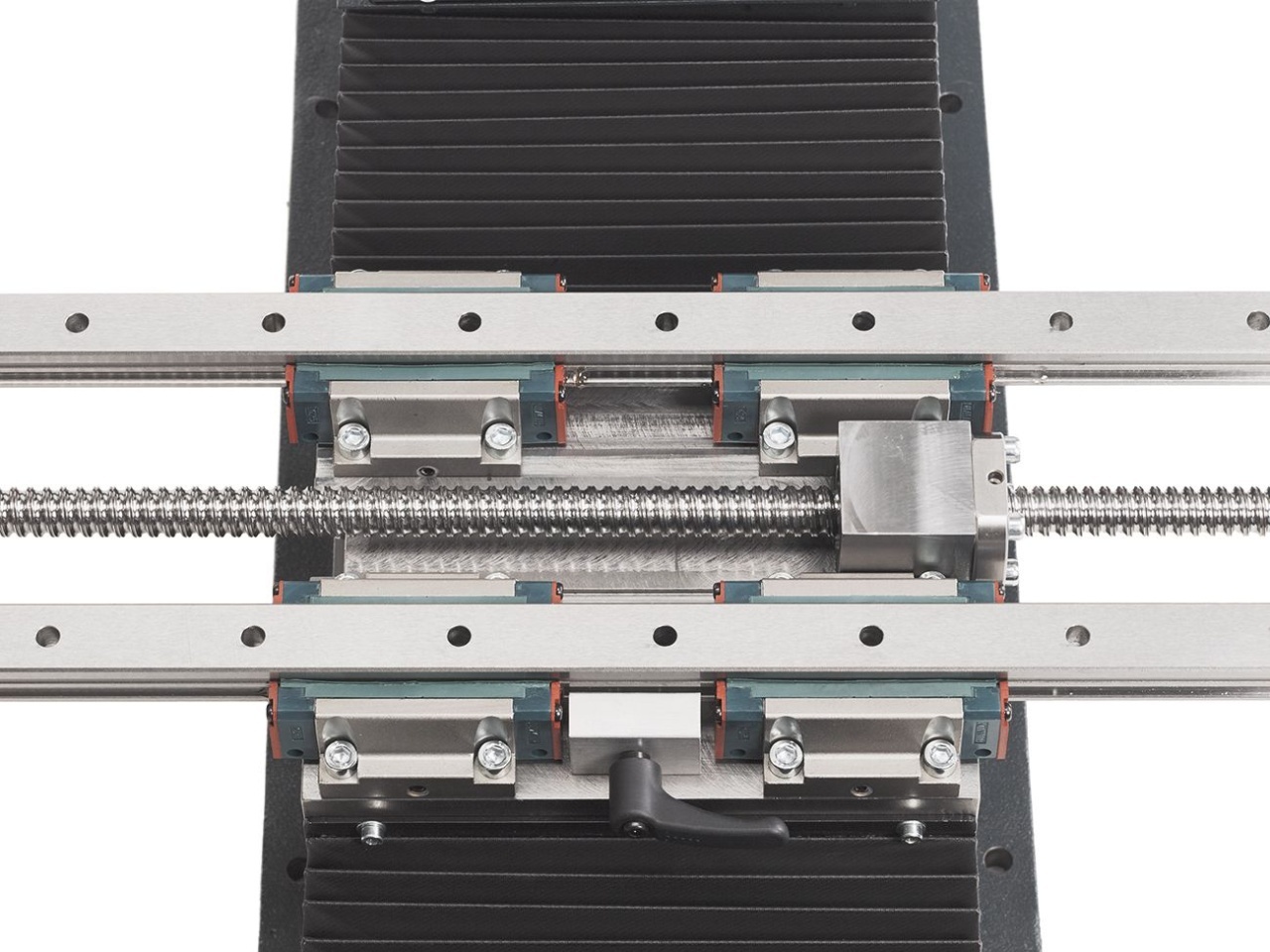

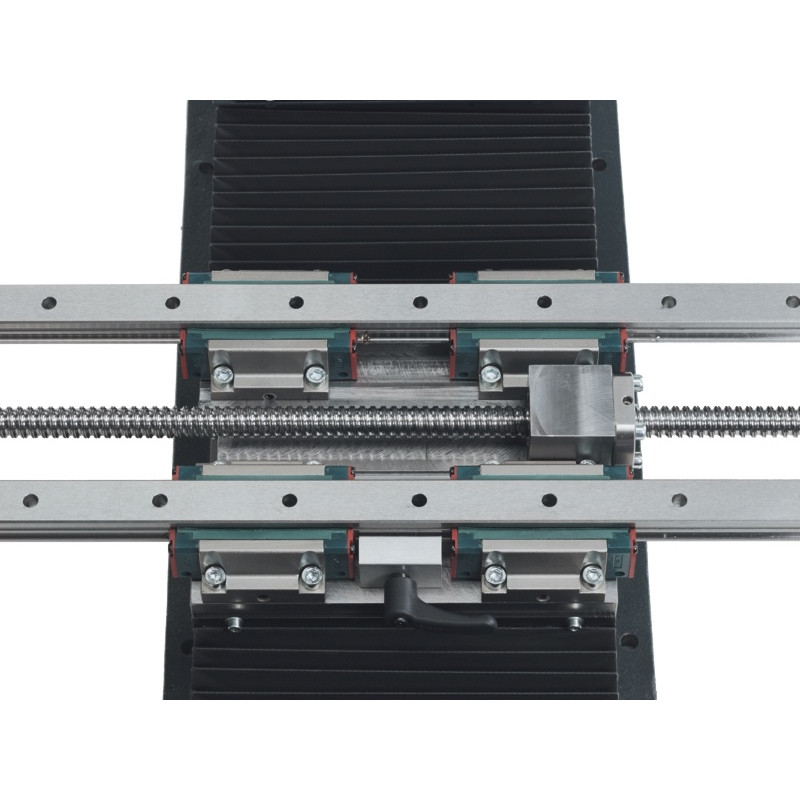

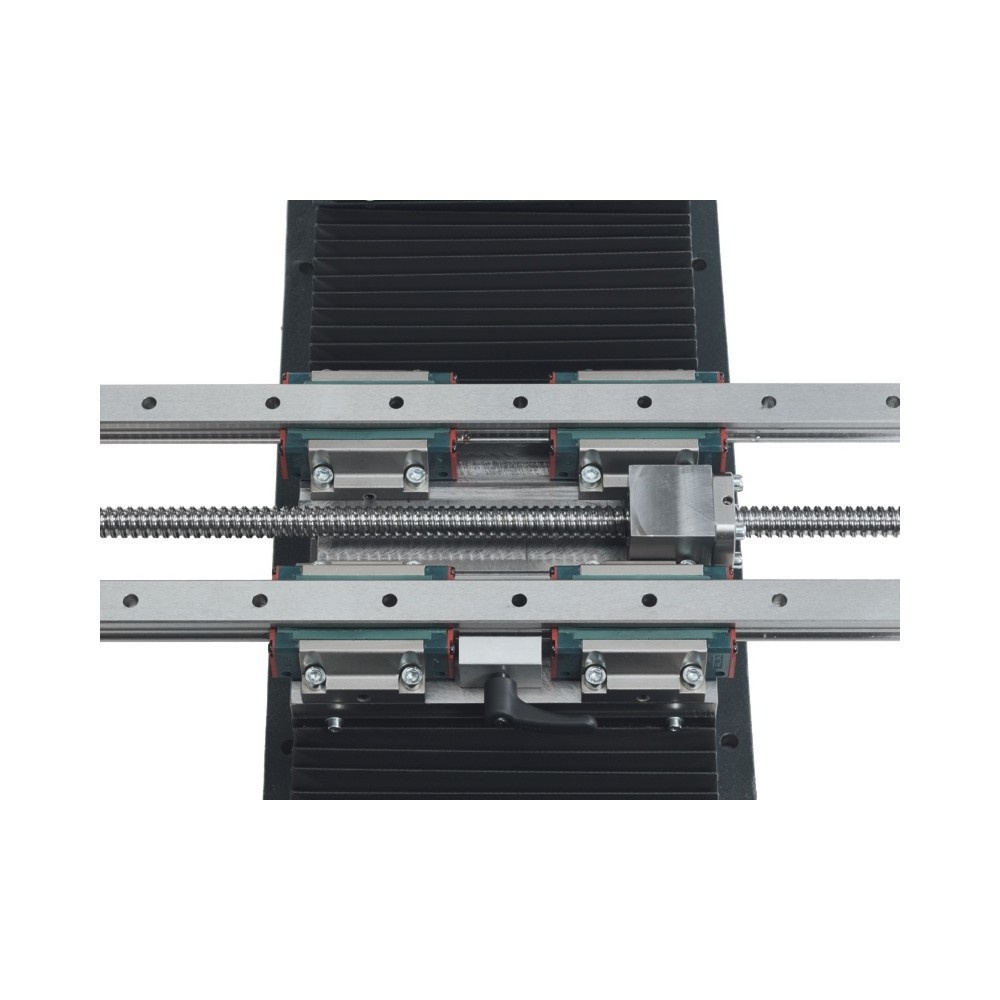

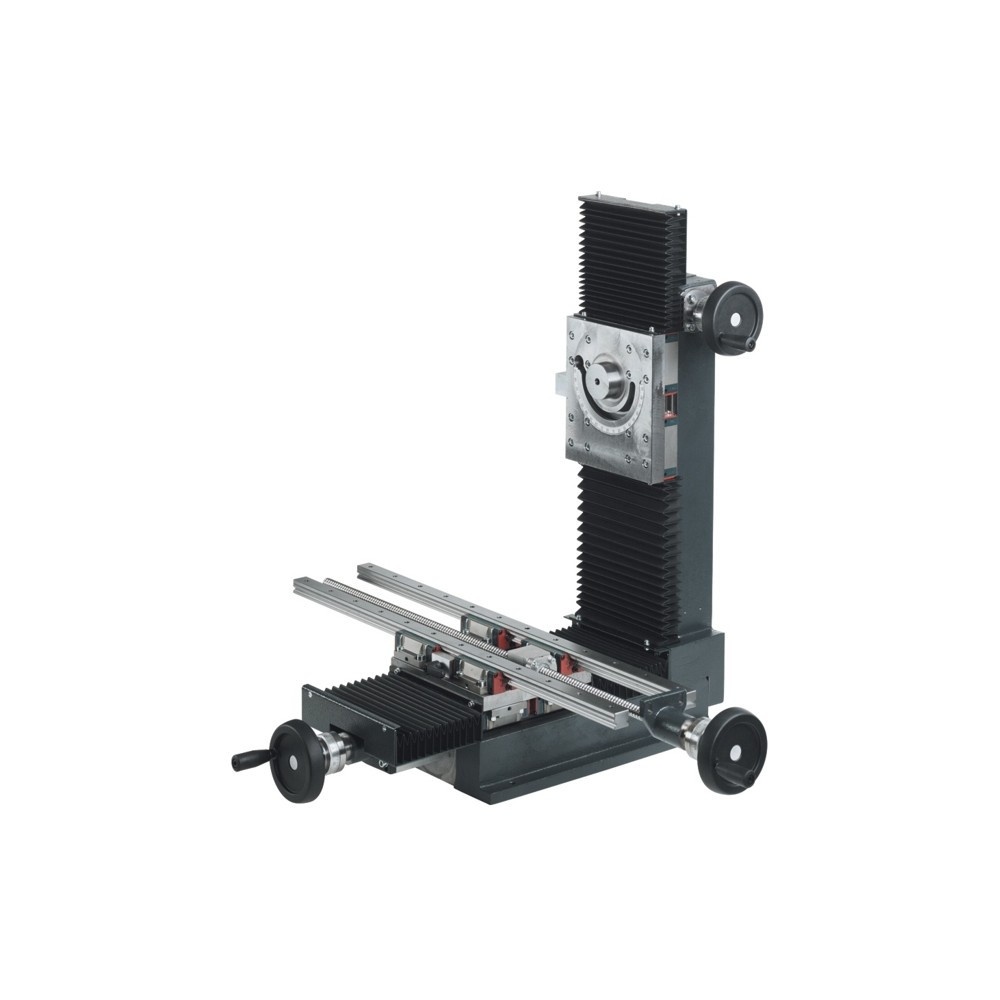

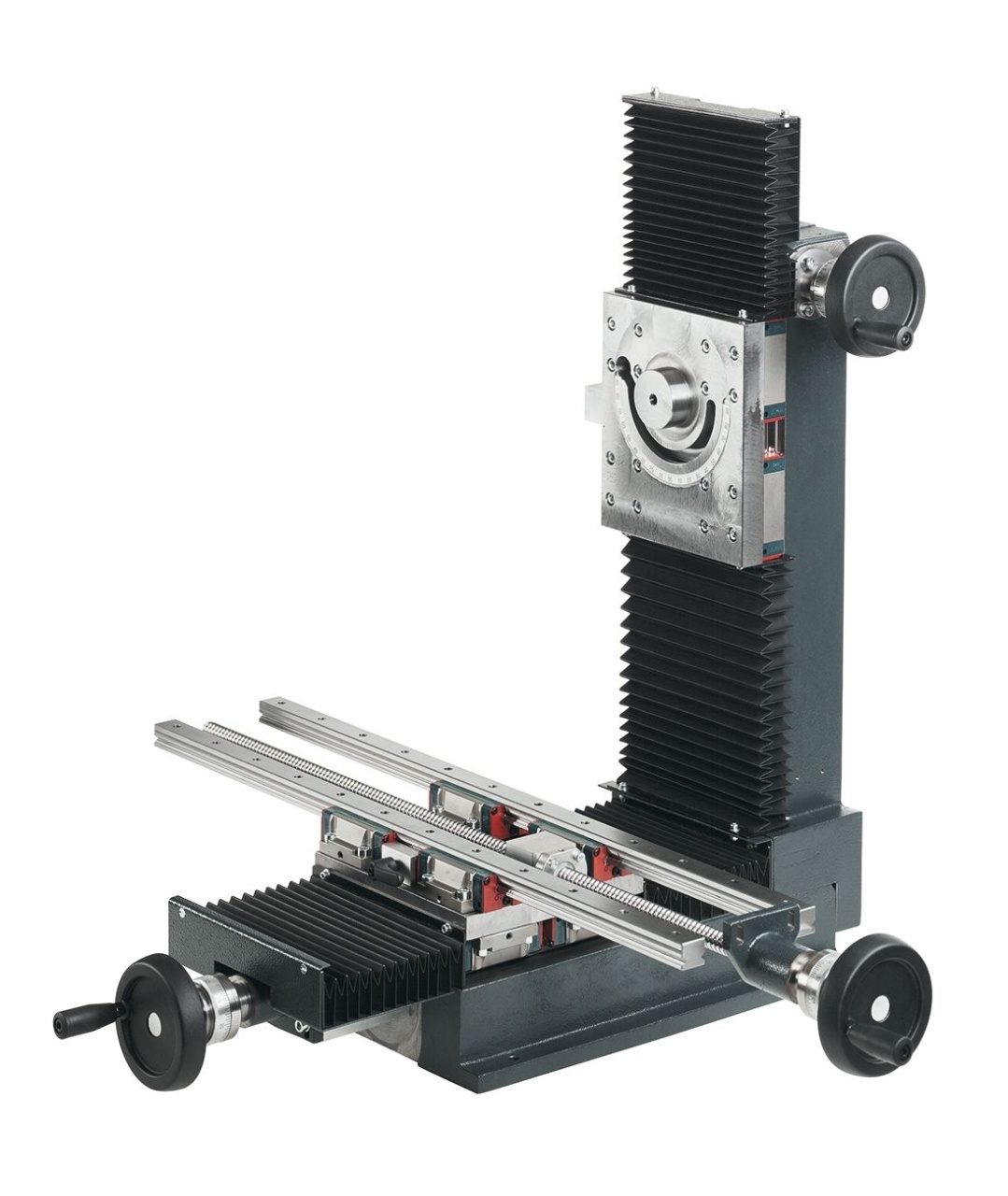

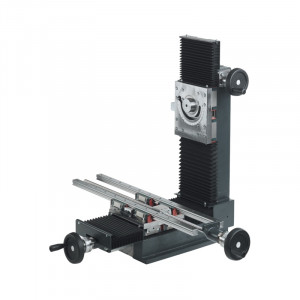

Guides
linear guides	●
maintenance-free	●
hardened and ground in all axes	●
2 with free of play ball guides	●
high precision and rigidity	●
very high workpiece accuracy	●
4 folding bellows for guide protection	●
Axes locking device
clean milling surface by fixing the individual axes	●
Feed screws
trapezoidal thread spindles in all axes	●
adjustable by means of adjustable bronze double nuts	●
reading accuracy of the scale rings 0.05 mm	●
Dimensions and weight
machine dimensions without packaging	W940 x D890 x H900 mm
weight without packaging	127 kg
